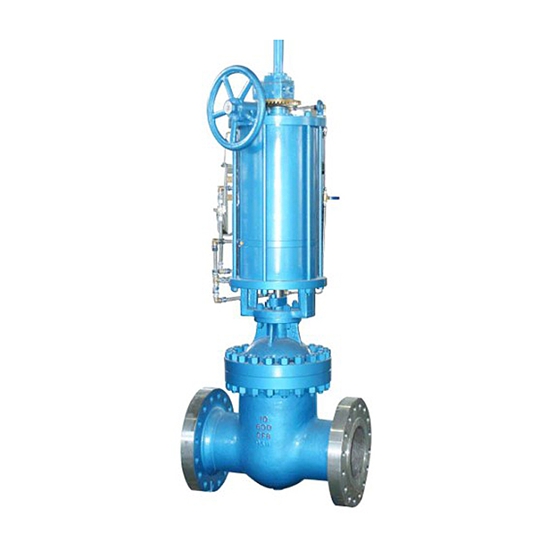

Z644H Pneumatic parallel gate valve

關注次數：

所屬類別：Gate Valve Series

[usage]
Pneumatic valve and reliable performance, convenient operation and repair switch, petroleum, chemical, has been widely used in all kinds of marine sectors such as media control

[features]
1, pneumatic valve with pneumatic actuator and manual mechanism
2, the valve actuator with double cylinder structure, it is with a single cylinder type pneumatic valve, lifting force doubled
3, solved some valve single cylinder type pneumatic valve in the valve body wedge die and not open
4, a buffer mechanism, can effectively reduce the valve plate when the valve is closed by the piston down caused by the impact of the sealing surface and valve sealing surface wear, but also to avoid the Death Gate cards phenomenon

[properties]

Applicable medium	Applicable temperature (c)	Material Science
Applicable medium	Applicable temperature (c)	The valve body, valve cover	The seat, disc and seal ring	The valve stem	Filler	Cylinder
Water, steam, oil etc.	≤350	Carbon steel	Fe based alloy surfacing	Chromium stainless steel	Flexible graphite	Seamless steel tube

Pneumatic valve 1.6MPa connection dimensions

Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	mm	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780	2050	2181	2599
W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600	720	720	720

Pneumatic valve 2.5MPa connection dimensions

Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	mm	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780	2050	2181	2599
W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600	720	720	720
